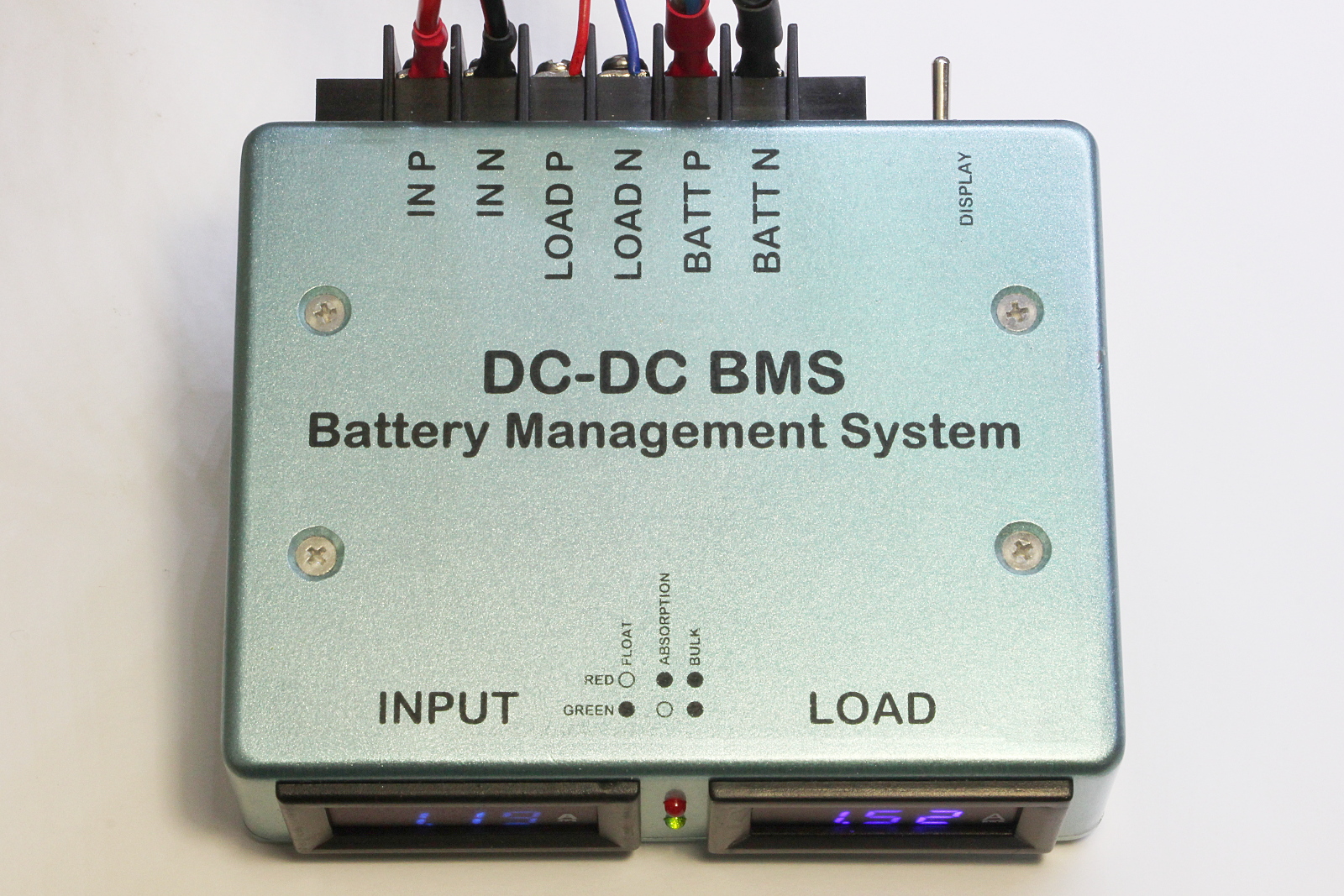

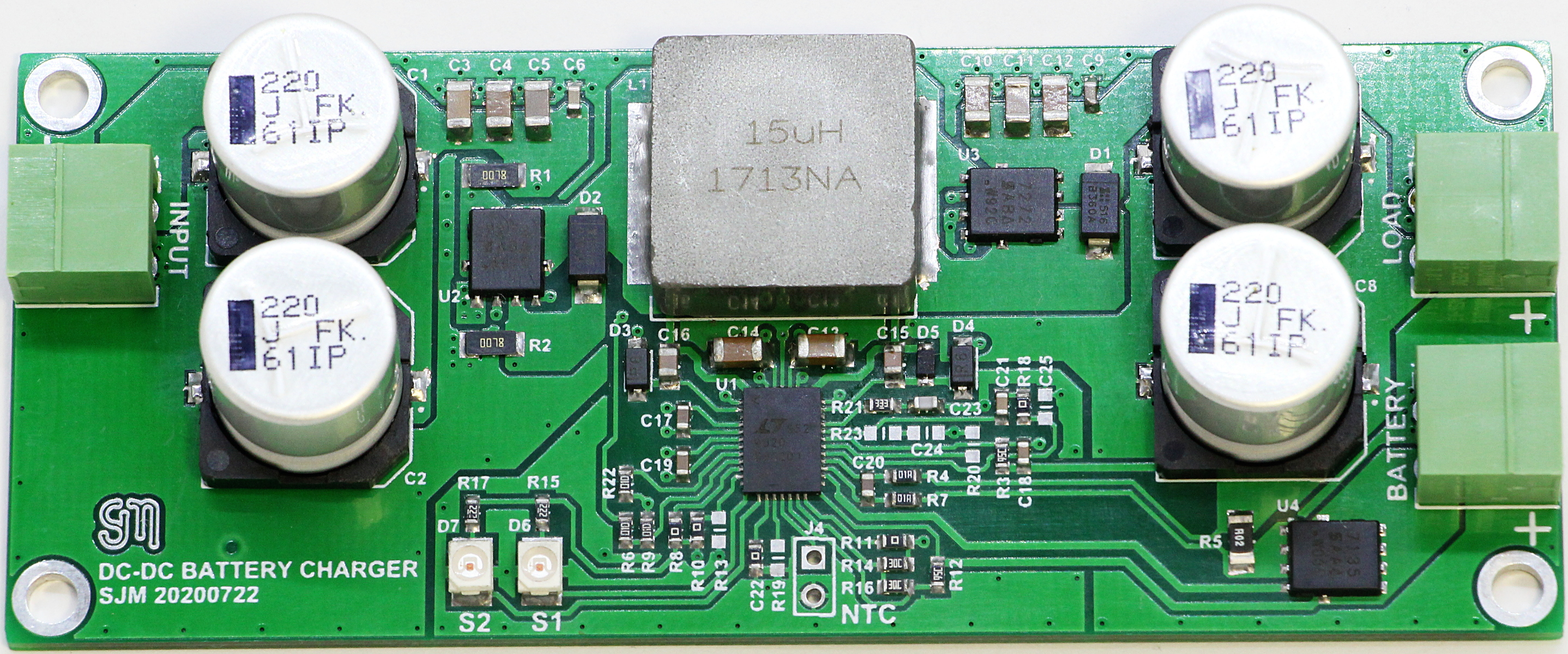

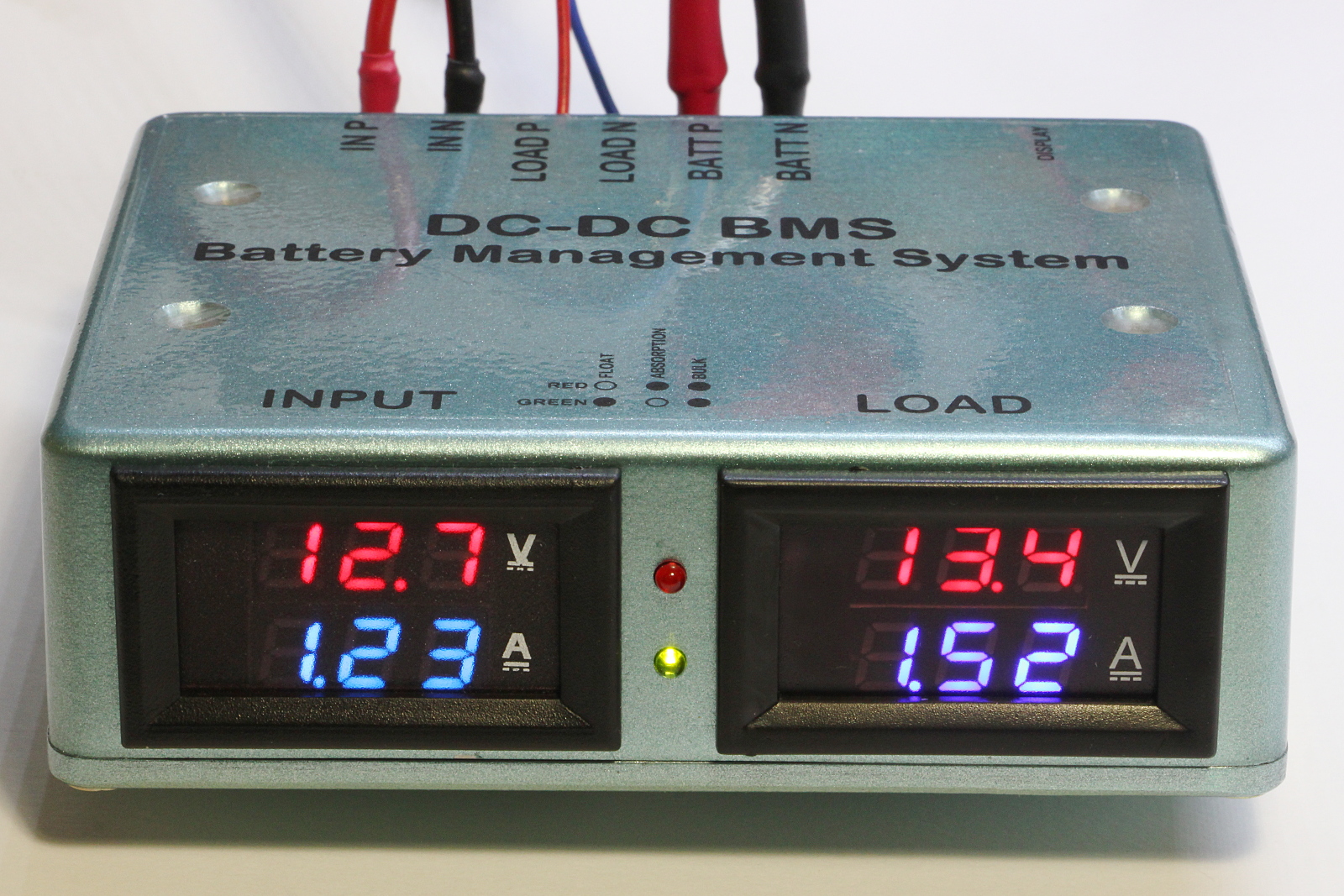

Multi-Chemistry DC-DC Battery Charger

Features:
- Wide Voltage Range: 4.5V to 55V Input, Up to 55V Output (60V Absolute Maximums)
- Synchronous Buck-Boost DC/DC Controller
- Li-Ion and Lead-Acid Charge Algorithms
- 0.5% Float Voltage Accuracy
- 5% Charge Current Accuracy
- Instant-On for Heavily Discharged Batteries
- Ideal Diode Controller Provides Low Loss Power Path When Input Power is Limited
- Input Voltage Regulation for High Impedance Input Supplies and Solar Panel Peak Power Operation
- Onboard Timer for Protection and Termination
- Bad Battery Detection with Auto-Reset
- NTC Input for Temperature Qualified Charging

Download schematic

Last update: 15 August 2020
